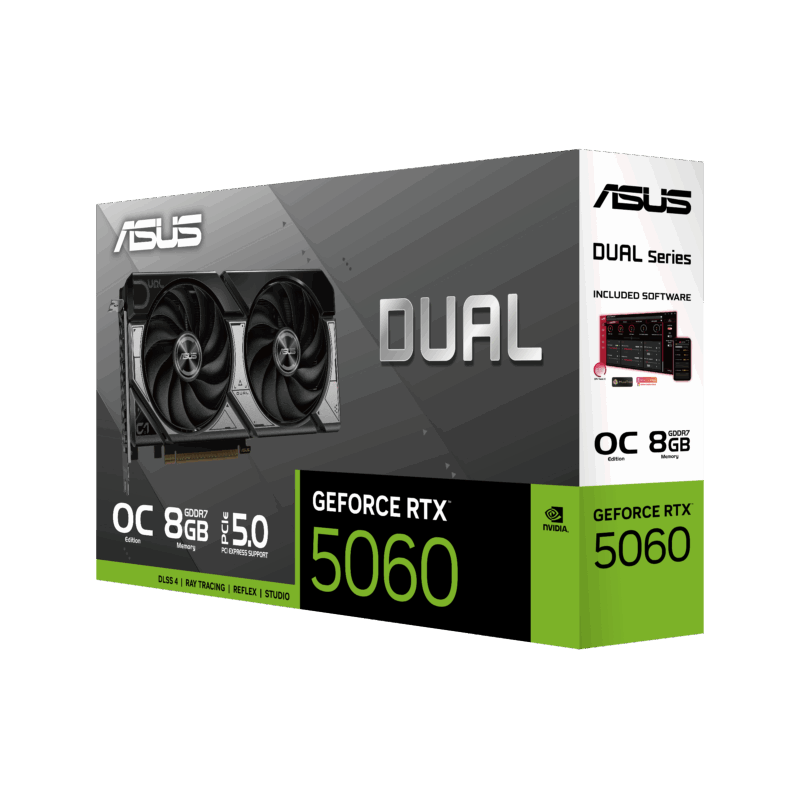

Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition

About Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition Category Specification Graphics Engine NVIDIA® GeForce RTX™ 5060 CUDA Cores 3,840 AI Performance 623 TOPS Architecture NVIDIA Blackwell Tensor Cores 5th Generation Ray Tracing Cores 4th Generation Memory 8GB GDDR7 Memory Interface 128-bit Memory Speed 28 Gbps Memory Bandwidth 448 GB/s Bus Standard PCI Express 5.0 Boost Clock (OC Mode) 2,565 MHz Boost Clock (Default) 2,535 MHz Maximum Resolution 7680 x 4320 (8K UHD) Display Outputs 1 x HDMI 2.1b, 3 x DisplayPort 2.1b Maximum Display Support 4 Power Connectors 1 x 8-pin Recommended PSU 550W Slot Size 2.5-slot Dimensions 228 x 123 x 50 mm Cooling Technology Dual Axial-tech fans with 0dB technology Fan Bearings Dual-ball fan bearings Dual BIOS Yes (Performance and Quiet modes) Software ASUS GPU Tweak III, MuseTree, NVIDIA GeForce Game Ready & Studio Drivers SFF-Ready Yes HDCP Support Yes (2.3) OpenGL Support OpenGL® 4.6 Accessories Included Speedsetup Manual, Thank You Card Warranty 3 Years The Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition is a compact yet powerful graphics card designed for gamers and creators seeking high performance in small-form-factor (SFF) builds. Leveraging NVIDIA’s latest Blackwell architecture, this GPU delivers advanced AI capabilities, efficient cooling, and robust reliability. Key Features of the Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition Compact Design: SFF-ready 2.5-slot form factor ensures compatibility with a wide range of PC cases, making it ideal for space-constrained builds. Axial-Tech Fans: Dual Axial-tech fans with longer blades and barrier rings enhance airflow and increase downward air pressure for improved cooling efficiency. 0dB Technology: Fans automatically stop when GPU temperatures drop below 50°C, ensuring silent operation during light workloads. Dual Ball Fan Bearings: Provides up to twice the lifespan of traditional sleeve-bearing designs, enhancing durability. Vented Backplate: Improves heat dissipation, maintaining optimal temperatures during intensive tasks. NVIDIA Blackwell Architecture in the Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition Fifth-Gen Tensor Cores: The Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition delivers maximum AI performance with support for FP4 precision and DLSS 4 technology. New Streaming Multiprocessors: Optimized for neural shaders, enhancing AI-driven graphics rendering. Fourth-Gen Ray Tracing Cores: Enables full ray tracing with neural rendering, providing true-to-life graphics and cinematic visuals. AI-Enhanced Graphics: Supports DLSS 4 with Multi Frame Generation, boosting frame rates and image quality. NVIDIA Reflex 2 with Frame Warp: Reduces system latency for faster target acquisition and improved responsiveness in competitive games. Cooling System present in the Asus Dual Fan OC Edition Graphics Card 2.5-Slot Design: The carefully designed shroud, heatsink, and heatpipe layout allow the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance beyond the compact size. Axial-Tech Upgrades: Features a smaller hub to facilitate longer blades and a barrier ring to increase downward air pressure. 0dB Technology: Eliminates unnecessary noise by halting all fans when the GPU temperature drops below 50°C and power consumption is low. Dual Ball Fan Bearings: Provide superior durability and can last up to twice as long as sleeve-bearing designs. Vented Backplate: Significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. Reliability and Engineering by the Asus GeForce GDDR7 OC Edition Graphics Card ASUS GPU Guard: Applies adhesive to secure all four corners, reducing the risk of cracks and ensuring uniform mounting pressure. Protective Backplate: Reinforces the PCB, adding structural rigidity and protecting components and trace pathways from damage. Stainless Steel Bracket: The mounting bracket is made of 304 Stainless Steel, offering increased hardness and corrosion resistance. Software and Tuning present in the Asus Computer Gaming Graphics Card GPU Tweak III: An intuitive and feature-rich utility that offers: One-click overclocking for hassle-free performance boosts. Detailed hardware monitoring. Power target adjustments. Custom fan curves. A revamped interface for greater accessibility. Voltage-Frequency tuner for easier overclocking. 0dB fan technology. Automatic profile swapping. Fully customizable on-screen display and logging capabilities. Additional NVIDIA features present in the Asus Dual BIOS Desktop Graphics Card NVIDIA ACE: Supports digital humans and AI assistants, enhancing interactive experiences. NVIDIA Studio: Accelerates creative workflows with specialized tools and technology. NVIDIA Broadcast: Enhances video and audio quality for streaming and conferencing. Ninth-Gen NVIDIA Encoder: Provides efficient and high-quality video encoding. Game Ready and Studio Drivers: Deliver the best experience for your favorite games and creative applications, ensuring maximum performance and reliability. NVIDIA G-SYNC: Offers enhanced motion clarity, smooth tear-free immersion, and ultra-high frame rates. Performance and Application benefits of the Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition 1080p Gaming: The Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition delivers exceptional performance in modern games at high settings, ensuring smooth and immersive gameplay. AI and Machine Learning: Equipped with specialized AI Tensor Cores, providing advanced performance for AI-driven applications and workflows. Content Creation: Accelerates rendering tasks, video editing, and 3D modeling, making it suitable for creators and professionals. Energy Efficiency: Designed to be energy-efficient, with a TDP of 170 W, ensuring it doesn’t overburden your system’s power supply. Versatile Connectivity: Includes one HDMI 2.1 port and three DisplayPort 1.4a outputs, supporting multi-monitor setups and high-speed connections.
